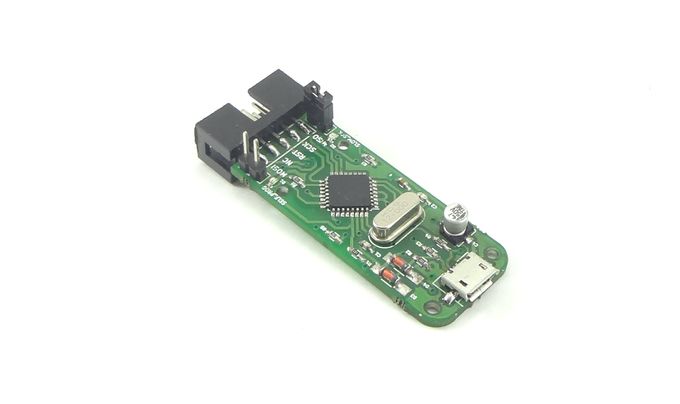

AVR USBasp v1.0 programmer Revision as of 16:05, 28 December 2016 by Guru (Talk | contribs) (diff) ← Older revision | Latest revision (diff) | Newer revision → (diff)

Connecting to Target Hardware

• Connect the 5X2 FRC cable to one end of the Programmer and other end to Development board or target device.

Downloads

Schematic

Setting up the XploreFlash Programmer

Step 1: Xplore flash is based on various opensource software, it requires avrdude. Avrdude is part of WinAVR GCC complier. Download and install it.

Step 2: Download and install USB driver for the programmer.
Step 3: Download and install XploreFlash GUI. (XploreFlash GUI is based on AVRDUDESS)

Step 4: Follow Step by step guide on using the programmer software XploreFlash program the micrcontroller. The GUI software will require .NET framework 2.0 or later please download and install it.

Troubleshoot

USBasp Driver not installed in device manager

If the USBasp Programmer is not detected in Device Manager of windows computer, perform steps shown as shown on Install USBasp Drivers Page.
