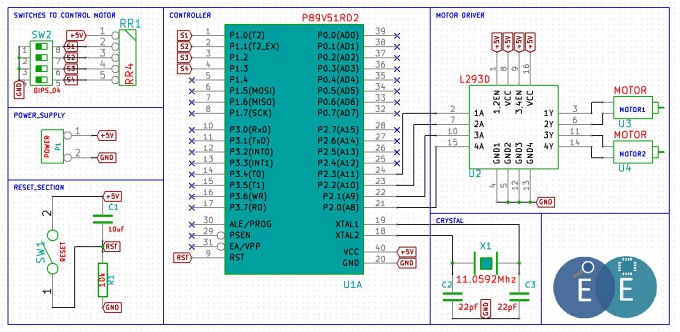

    [[File:Schematic 8051 Interfacing DC_Motor.JPG|680px]]

    [[File:Schematic 8051 Interfacing DC_Motor.JPG|680px]]

    =Code=

    =Code=
    −

    −
    </syntaxhighlight>#include<reg51.h>  #define Motors P2#define Switches P1#define Forward 0x05#define Backward 0x0a#define Left 0x06#define Right 0x09#define stop 0x00void main(){  unsigned char SwitchInput;    Switches = 0x0f; //Configure Switches  as Input    Motors = 0X00;  //Configure both Motors as Output.  while(1)  {   SwitchInput = (0x0f & Switches);   //read switch status and mask lower byte.    switch(SwitchInput)   {   case 1: Motors = Forward; break;   case 2: Motors = Backward; break;   case 4: Motors = Left; break;   case 8: Motors = Right; break;   default: Motors =stop;   }  }}

    −
    <\syntaxhighlight>



    =Download=

    =Download=

    * [http://exploreembedded.com/wiki/images/2/25/Schematic_8051_Interfacing_DC_Motor.pdf '''Schematic''']

    * [http://exploreembedded.com/wiki/images/2/25/Schematic_8051_Interfacing_DC_Motor.pdf '''Schematic''']
