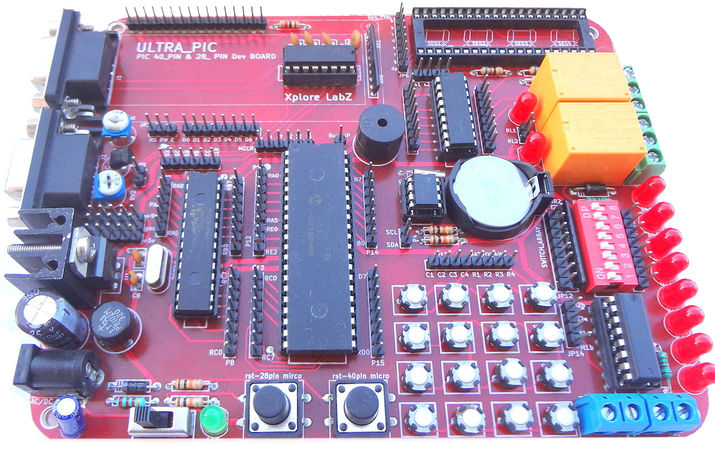

Ultra PIC

The Ultra_PIC board is based on PIC 40 pin and 28 Pin microcontrollers.Microcontrollers can be directly programmed from the microchip IDE using a ICSPprogrammer, ideal for rapid prototyping and testing.

Features:

->

• Power supply: 9 to 12V, 1A ac/dc adapter compatible.
• LCD Interface.
• Four Seven Segments.
• ULN2803 Driver.
• Two Relays • Buzzer.
• DIP Switches.
• Eight LEDs.
• Real Time Clock.
• Keypad 4x4.
• L293D Motor Driver.
• Two Serial Interface.
• Temperature Sensor and Potentiometer.
• Breakout for 28 pin PIC Microcontroller.
• Breakout for 40 pin PIC Microcontroller.

Physical Features:

->

• Dimensions: 150mm x 120mm.
• Glass Epoxy FR4 PCB.
• Wave soldered.
