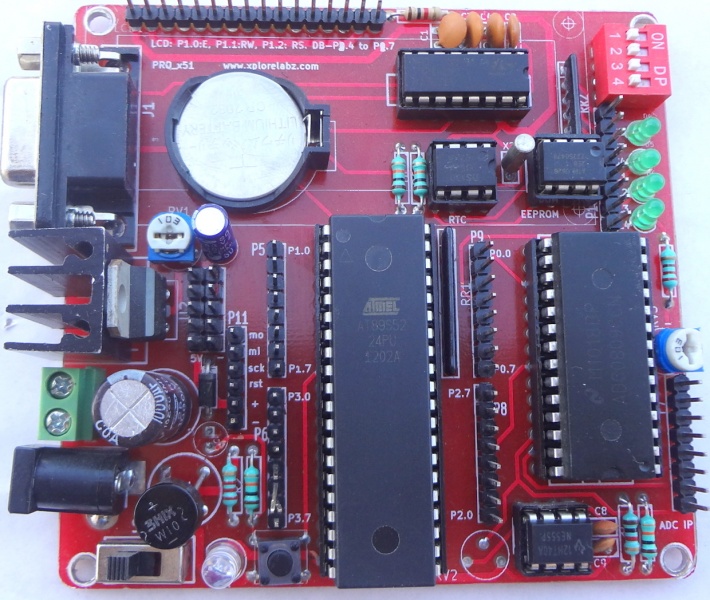

Pro x51
PRO_X51 is designed to support development ofvarious academic projects based on 8051 microcontroller. It uses ADC 0808 to interface even analog signals.
Features:
->
- ADC O808, 8 channels, 8-bit.
- Temperature sensor (LM35) and potentiometer interfaced.
- LCD 4 bit mode.
- RTC and EEPROM using I2C.
- Serial Interface RS232.
- Test switches (4) and LEDs(4).
Physical Features:
->
- Dimensions: 95mm X 95mm.
- 1.6mm Glass Epoxy, FR4 PCB.
- Wave Soldered.
