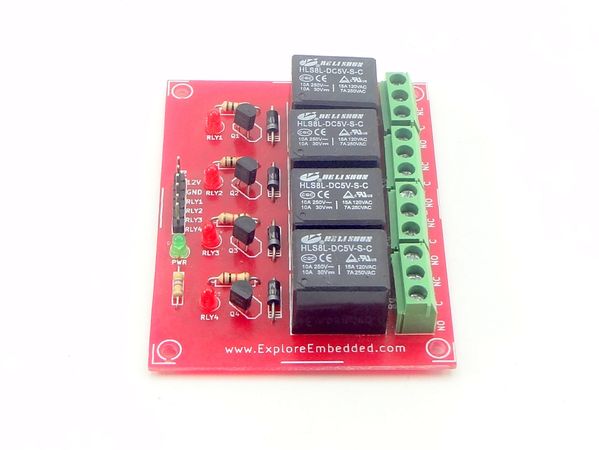

Fig 1:4Channel Relay

This breakout board helps you switch AC devices. It has 4 channels that it can switch. It is compatible with Arduino, AVR, PIC and other micro-controllers. The relay operates on 5V DC. The label on the board is wrong, it should be 5V instead of 12V.

Relay Specifications

  • Relay terminals are accessible with screw terminals
  • The on board relay can handle current upto 10A
