Original file(1,801 × 1,040 pixels, file size: 748 KB, MIME type: image/jpeg)

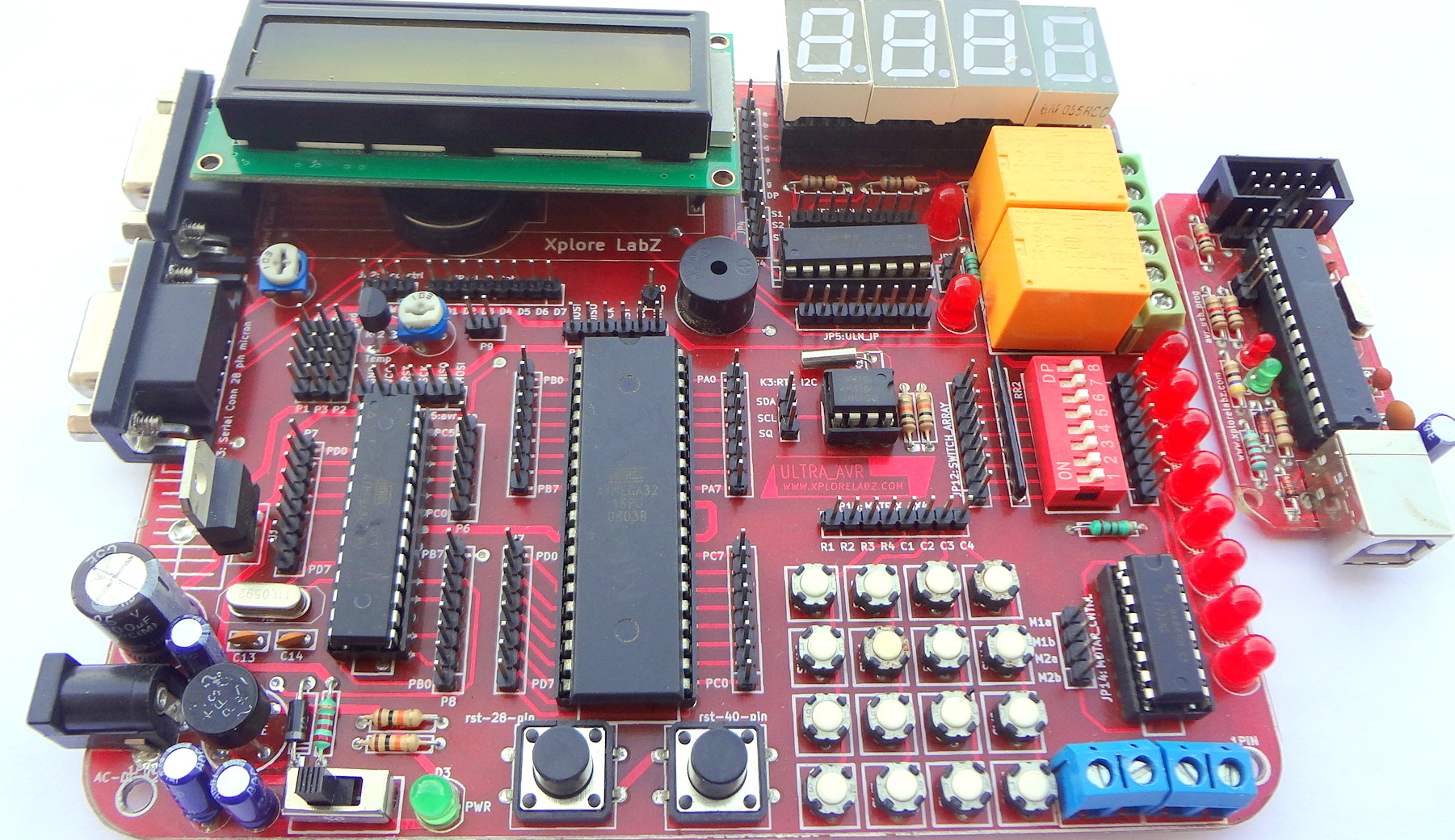

  1. 1.AVR Development board with All ICs
    #2.Microcontrollers: Atmega16, Atmega8
    #3.LCD 16x2
    #4. Seven Segments 4 numbers
    #5. RTC battery
    #6. Buzzer
    #7. Two Relays
    #8. Eight DIP Switch
    #9. Eight 5mm LEDs
    #10. 4 x 4 Keypad
    #11. Two Serial Ports
    #12. Temperature Sensor LM35
    #13. Power adapter 12V, 1A
    #14. Single pin female connectors: 20
    #15. Serial Cable
    #16. USB Cable
    #17. AVR USB Programmer
