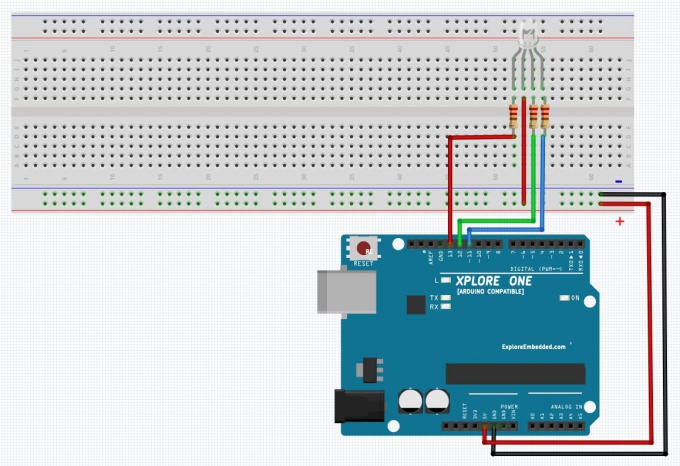

Arduino Interface RGB LED.JPG

Code

/*
 Display colors with RGB LED
  Turns on an LED RED,GREEN and BLUE, repeatedly.


 */

// Pin 11,12,13 has an LED connected Through resistor.
// LED Anode is connected to +5V.
// give it a name:
int led = 13;
int led1 = 12;
int led2 = 11;
// the setup routine runs once when you press reset:
void setup() {
  // initialize the digital pin as an output.
  pinMode(led, OUTPUT);
pinMode(led1, OUTPUT);
pinMode(led2, OUTPUT);
}

void loop() {
  digitalWrite(led2, HIGH);
  digitalWrite(led1, HIGH);
  digitalWrite(led, HIGH);
  delay(500);
 digitalWrite(led, LOW);
digitalWrite(led1, HIGH);
delay(500);
digitalWrite(led1, LOW);
digitalWrite(led2, HIGH);
delay(500);
  digitalWrite(led2 , LOW);
  delay(500);
